Description
Unitherm 24K Non-Inverter Wall Mount Air Conditioner – 22000BTU Capacity, Cooling Capacity 6200W, Heating capacity 6175W, Indoor noise level 49dB, Outdoor noise level 56dB, B Class Energy Efficient, Suitable for room sizes of 27-43 m², Strong heating & Strong cooling, 70% Saving on heating, Retail Box, and 3 Year Warranty
Product Overview

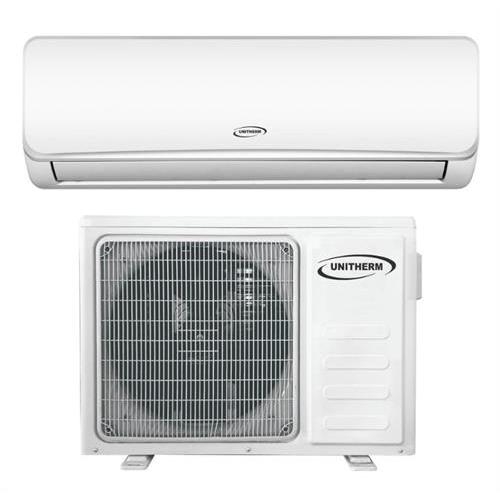

The Unitherm 24K Non-Inverter Wall Mount Air Conditioner offers 22,000 BTU cooling and heating capacity with energy class B efficiency and a rotary compressor. It features rated power inputs of 2050W (cooling) and 1920W (heating), operates quietly at 49dB indoors, and uses R410A refrigerant with a pipe length capacity of up to 15 meters. it supports operation in ambient temperatures from -7°C to 48°C.
Specifications
•Product Code: UNI-RAC24B
•Description: Unitherm 22K Non Inverter Wall Mount Air Conditioner
•Capacity (BTU/H): 24000BTU
•Energy Class in Cooling:B
• Voltage Rage: 165-264V
Cooling
•Capacity (W): 6200W
•Rated power input: 2050W
•Rated Current: 9.41A
•EER: 3.02W/W
•Max. Power Input: 3200W
•Max Current: 14.50A
Heating
•Capacity (W): 6175W
•Rated power input: 1920W
•Rated Current: 9.18A
•COP: 3.22W
•Energy class in heating: B
•Max Power Input: 3200W
•Max. Current: 14.50A
•Moisture removal: 2.60Liters/h
•Indoor noise level: 49dB
•Outdoor noise Level: 56dB
Compressor
•Type: Rotary
•Refrigerant: 1250g
•Expansion device: Capillary tube
•Indoor Air Flow(Hi/Mi/Lo): 1050/950/800 M3/H
Indoor Coil
•Unit Dimension (W*H*D): 970x310x230mm
•Packing (W*H*D): 1035x380x310mm
•Net/Gross Weight: 10.6 Kg
•Gross Weight: 13.8 Kg
Outdoor Coil
•Unit Dimension (W*H*D): 820x330x597
•Packing (W*H*D): 945x430x670
•Net Weight: 41.5 Kg
•Gross Weight: 46.5 Kg
Refrigerant Pipe
•Liquid Side: 6mm
•Gas Side: 15.88mm
•Max. Refrigerant Pipe Length: 15m
•Max. Difference in Level: 5m
•Refrigerant Type: R410A
•Ambient Temperature Range: -7 Degreece celcius-48 Degreece Celcius
•Application Area(mm2): 27~43
•Description: Unitherm 22K Non Inverter Wall Mount Air Conditioner
•Capacity (BTU/H): 24000BTU
•Energy Class in Cooling:B
• Voltage Rage: 165-264V
Cooling
•Capacity (W): 6200W
•Rated power input: 2050W
•Rated Current: 9.41A
•EER: 3.02W/W
•Max. Power Input: 3200W
•Max Current: 14.50A
Heating
•Capacity (W): 6175W
•Rated power input: 1920W
•Rated Current: 9.18A
•COP: 3.22W
•Energy class in heating: B
•Max Power Input: 3200W
•Max. Current: 14.50A
•Moisture removal: 2.60Liters/h
•Indoor noise level: 49dB
•Outdoor noise Level: 56dB
Compressor
•Type: Rotary
•Refrigerant: 1250g
•Expansion device: Capillary tube
•Indoor Air Flow(Hi/Mi/Lo): 1050/950/800 M3/H
Indoor Coil
•Unit Dimension (W*H*D): 970x310x230mm
•Packing (W*H*D): 1035x380x310mm
•Net/Gross Weight: 10.6 Kg
•Gross Weight: 13.8 Kg
Outdoor Coil
•Unit Dimension (W*H*D): 820x330x597
•Packing (W*H*D): 945x430x670
•Net Weight: 41.5 Kg
•Gross Weight: 46.5 Kg
Refrigerant Pipe
•Liquid Side: 6mm
•Gas Side: 15.88mm
•Max. Refrigerant Pipe Length: 15m
•Max. Difference in Level: 5m
•Refrigerant Type: R410A
•Ambient Temperature Range: -7 Degreece celcius-48 Degreece Celcius
•Application Area(mm2): 27~43
